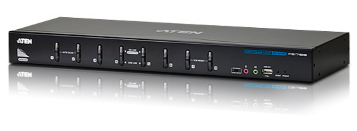

CS1788 8-PORT USB DVI DUAL LINK KVM SWITCH
The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features Multi-view functionality, which enables the use of standard USB cables to stack up to four switches for quad-viewing in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
· One USB console controls eight Dual Link DVI or VGA computers and two additional USB 2.0 devices
· Supports both digital (DVI) and analog (VGA) video – mixed operation possible
· Cascadable to three levels – control up to 512 computers
· Multi-view feature – stack up to four CS1788 units and display video from up to four monitors (dual view / triple view / quad view)
· 2-port USB 2.0 hub built in
· Fully compliant with the USB 2.0 specification
· Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
· OSD Backup/Restore feature – enables the administrator to back up the switch’s configuration and user profile information
· Two-level (Administrator/User) password authorization for enhanced security protection
· Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
· Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound Systems
· Console audio ports on front panel for easy access
· Multiplatform support – Windows, Linux, Mac, Sun
· Supports widescreen resolutions
· Superior video quality – 2560 x 1600 (Dual Link DVI); 2048 x 1536 (VGA); DDC2B
· Independent switching of KVM and USB focus
· DVI digital and analog monitor support – fully compliant with the DVI specifications
· HDCP compatible
· Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
· Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
· Complete keyboard emulation for error-free booting
· Mac/Sun keyboard support and emulation*
· Multilingual keyboard mapping – supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese, and Spanish
· Auto Scan Mode for monitoring all computers
· Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously
· Firmware upgradable
Note: PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers
